PV-ESS All-in-One System
GridOne
GridOne combines battery storage, PCS, EMS, and PV integration in one compact platform for commercial and industrial sites. It helps relieve grid pressure, expand site capacity, and increase energy value through smarter storage.
Intelligent Energy Storage System for
Peak Reduction & Solar Optimization

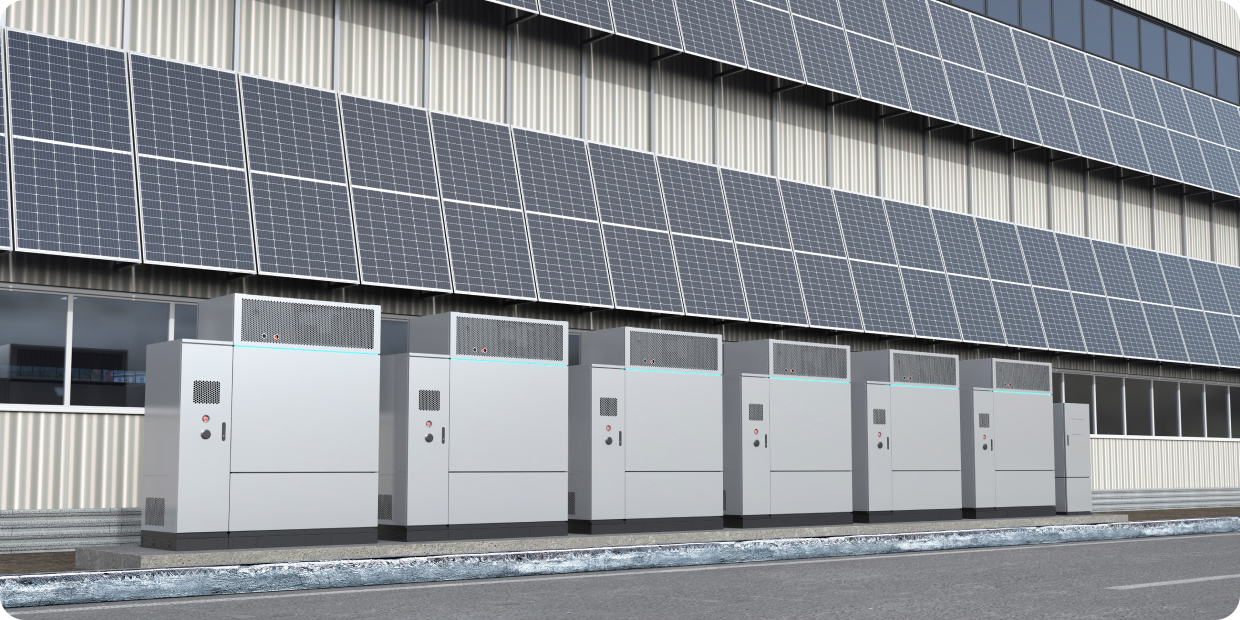

Designed for commercial and industrial sites, GridOne combines energy storage and PV
integration to reduce energy costs, increase site capacity and maximize solar value.
GridOne placeholder
Maximize site capacity
By buffering site loads and charging demand, GridOne helps defer transformer or grid capacity upgrades and supports faster deployment in constrained locations.
Lower energy costs
GridOne helps reduce electricity costs through peak shaving, demand charge management, and smarter site-level energy use.
Optimize solar value
With built-in PV input and MPPT support, GridOne helps maximize self-consumption and improve the value of on-site solar generation.
Scalable for growth
GridOne supports parallel operation for larger deployments, including up to 24 units in on-grid mode, and up to 10 units in off-grid mode.
Built for Energy Flexibility

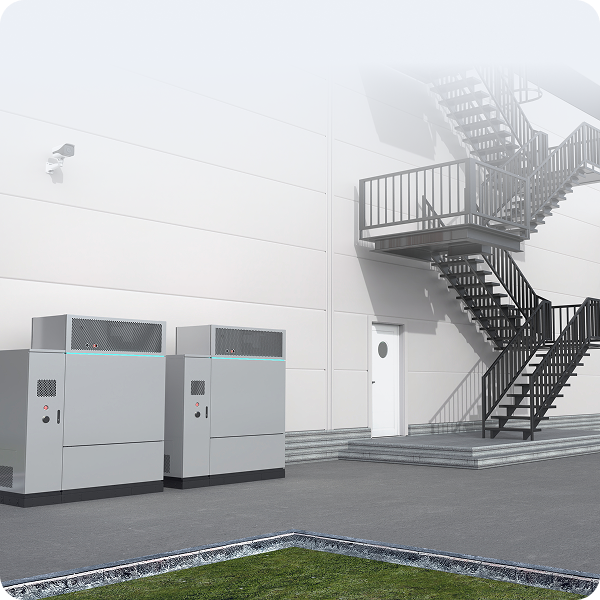

  • Peak shaving & demand control
    Reduce peak demand and smooth site load profiles.
    Peak shaving & demand control

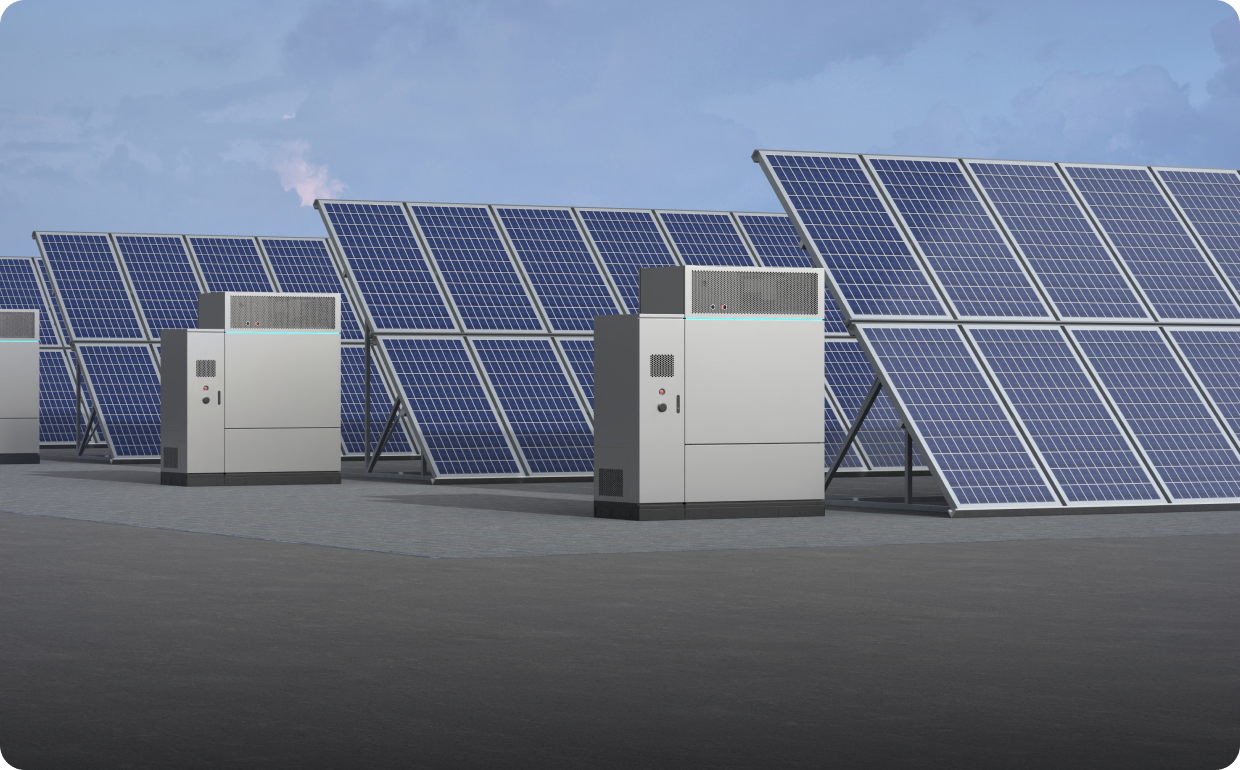

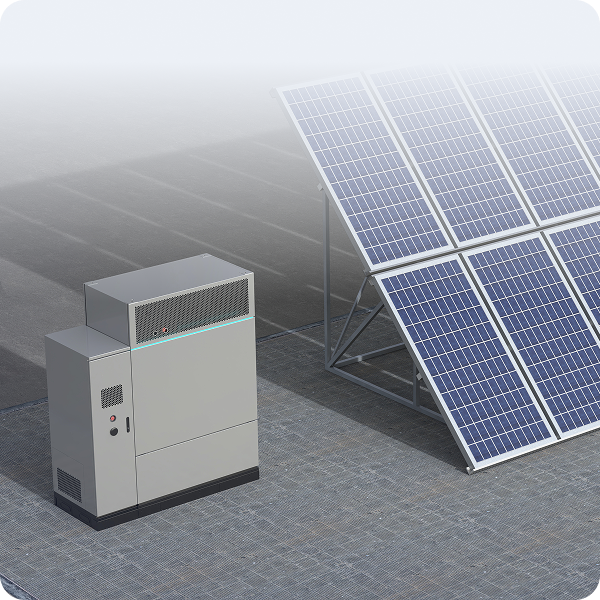

  • PV integration
    Support direct PV input with up to 50 kW MPPT.
    PV integration

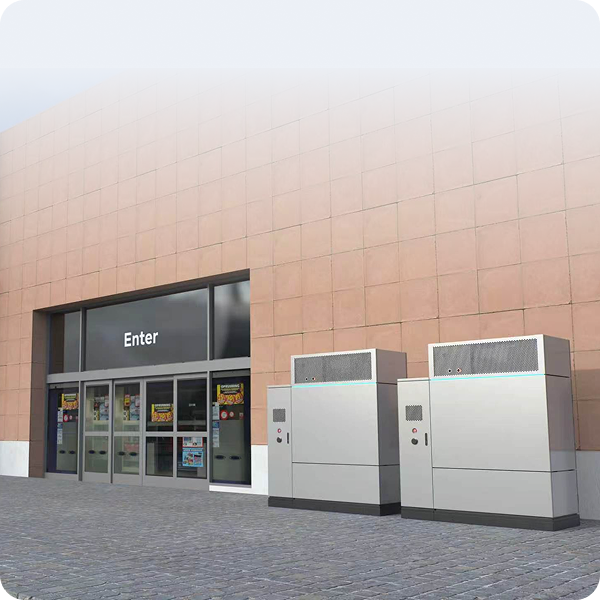

  • Microgrid & off-grid support
    Maintain critical loads with on-grid or grid-independent operation.
    Microgrid & off-grid support

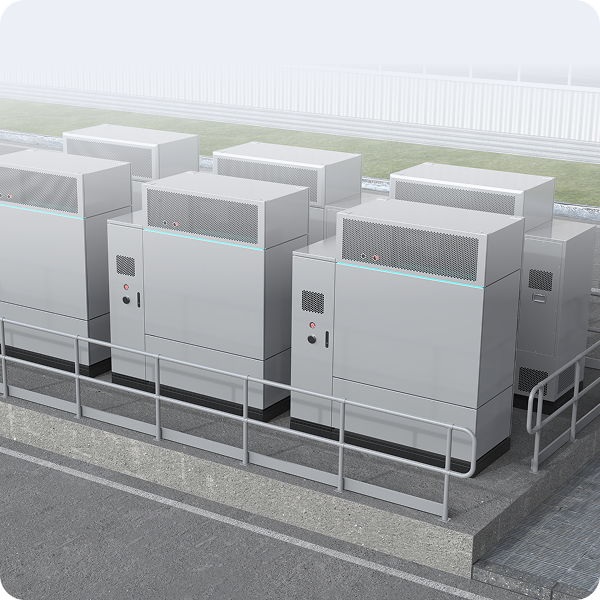

  • Grid support services
    Support reactive power control and voltage/frequency stability functions.
    Grid support services

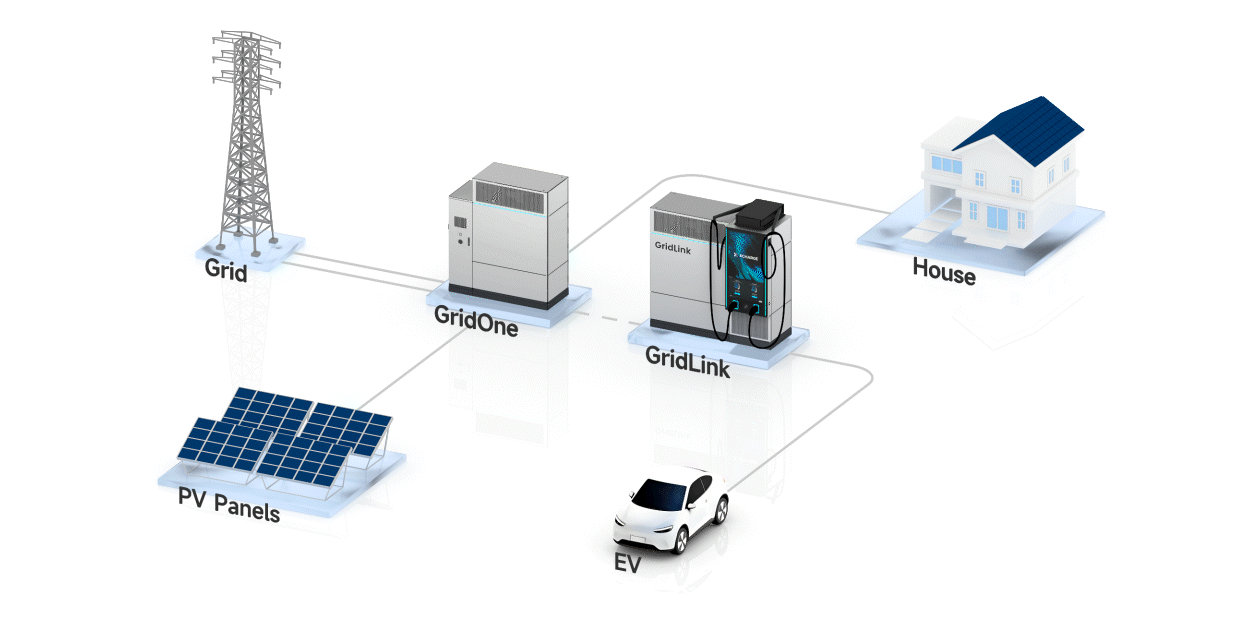

How GridOne Works
GridOne connects the grid, solar, battery storage, and site loads in one intelligent system, enabling flexible power
distribution for EV charging, building demand, and critical backup needs.
GridOne system placeholder
  • Compact by Design
    An all-in-one system built for easier site integration.
  • Build to Connect
    Works across site systems for smarter energy coordination.
  • Engineered for Reliability
    Built-in protections help support safe and stable operation.
  • Deployment Ready
    Designed to support safety, compliance, and grid-integration requirements for smoother project rollout.
GridOne is Ideal for
  • Commercial and
    Industrial Sites
  • Manufacturing Parks
  • EV Charging Hubs &
    Fleet Depots
  • Critical Facilities &
    Remote Sites
  • Solar-Integrated Sites

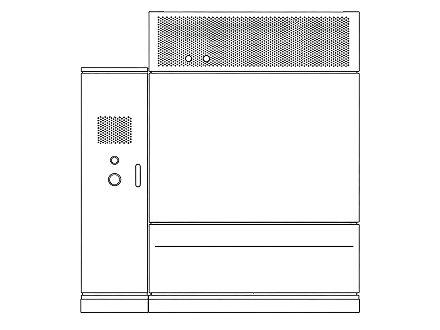

GridOne Specs
  • GridOne Datasheet
  • GridOne
    • PCS rated power
      125 kW
    • PV MPPT
      50 kW
    • LFP battery
      215 kWh
    • PV input
      630 V max input / 50 kW max power / MPPT 0-630 V
    • PCS peak efficiency
      ≥ 98.5%
    • MPPT peak efficiency
      > 99%
    • System protection
      IP54 cabinet
    • Parallel operation
      up to 24 units on-grid / up to 6 units off-grid (VF mode) / up to 10-12 units off-grid (VSG mode)
The future of smarter site energy management
GridOne helps commercial and industrial sites reduce energy costs, improve solar utilization,
unlock capacity, and support more resilient electrification.
