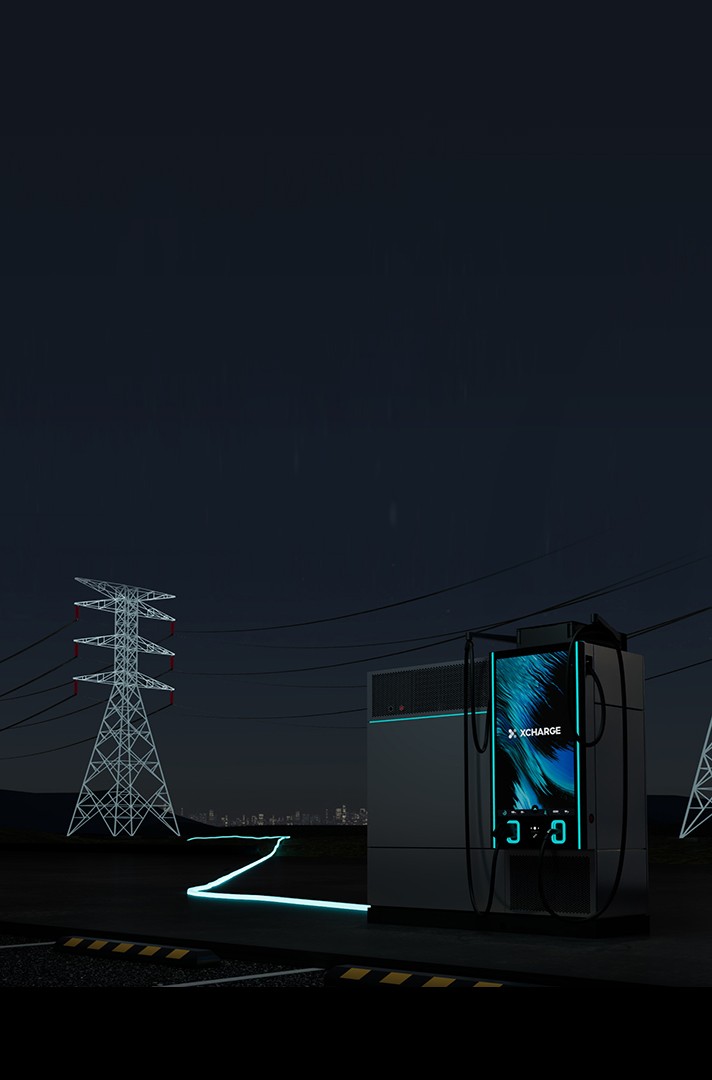

Powering EVs, Empowering the Grid
GridLink combines high-power EV charging with integrated storage delivering up to 194 kW output. The ultimate solution for flexible, reliable power – wherever you need it
Unparalleled Flexibility
Engineered for sites with limited grid capacity, GridLink adapts seamlessly
to any power environment, no infrastructure upgrades needed.
It empowers your operations to scale and evolve without constraints.
Build Quality
Crafted from industrial-grade alloy,
GridLink is designed to withstand
the harshest of environments in a
sleek and thin-walled design
  • Modular Battery Capacity
    Battery capacity of 215 kWh
    Upgradable to 430 kWh with double battery
  • 194 kW
    Max output power
    Utilize up to 44 kW from the grid with 150 kW from the battery for even more charging potential
55 Inch
Touch Display
Features a 55 inch touchscreen display complete with
an easy-to-navigate user interface with full
advertising capabilities
View charge status and manage battery functionality
directly on GridLink or in the cloud
  • In-House Developed
    Battery Modules
    with onboard fire suppression and
    safety measures
  • Cable Management
    Extendable arms and wires
Dual Ports
with 2x CCS2 Plugs
Game-Changing Functionality
GridLink's bidirectional energy flow and off-grid capabilities redefine energy management
ensuring power for cars, buildings, and the grid at large
Off-Grid Functions &
Bidirectional Power
Ensures uninterrupted charging and power
supply during blackouts
  • Photovoltaic Integration
    Supports direct integration with solar power systems,
    enabling up to 30 kW of PV input
  • Battery-to-Grid
    It's battery-to-grid- (B2G) capability
    allows stored energy to flow back into
    the grid, optimizing energy
    distribution and supporting grid
    stability while adding revenue potential
    v9
Dynamic Power Allocation
Intelligently distributes power between multiple connectors,
adjusting output to meet real-time demand
Smart Energy Management
Max Mode
Delivers the highest possible charging output, drawing maximum power from both the grid and the integrated energy storage system.
This mode is ideal for high-demand scenarios, ensuring vehicles receive the fastest possible charge to minimize downtime.
Eco Mode
Custome Mode
Reserve Mode
Seamless Installation and Commissioning
  • Small Footprint
    GridLink fits within a single parking
    space, with a footprint under 2.2 m
  • Easy Deployment
    Connects to the grid via a standard industrial socket,
    dramatically reducing installation time
GridLink is ideal for
  • Power Constrained Areas
  • Gas Stations & Convenience Stores
  • National Parks
  • Commercial Centers
  • Transportation Hubs
  • Hospitals
  • Solar Developments
  • Mixed-Use Developments
  • Hotels
  • Industrial Facilities
The future of flexible, resilient energy
management and EV Charging

Get in touch with our sales team!

tous
GridLink Specs
  • GridLink Datasheet
  • GridLink
    • Up to 194 kW Output
    • Battery Capacity
      215 kWh
    • Usable Energy (SAT)
      205 kWh
    • Grid Connection
      44 kW
    • Battery Output Power
      DC Max 150 kW
  • GridLink XL
    • Up to 194 kW Output
    • Battery Capacity
      2 * 215 kWh
    • Usable Energy (SAT)
      2 * 205 kWh
    • Grid Connection
      44 kW
    • Battery Output Power
      DC Max 150 kW
    • Max Output Power
      44 kW + 150 kW
    • Input Voltage
      3Phase 400 VAC+/- 10%
    • Output Voltage
      300 V ~ 1000 V
    • Photovolatic Input
      300-740 Vdc, Max 30 kW
    • Max Output Power
      44 kW + 150 kW
    • Input Voltage
      3Phase 400 VAC+/- 10%
    • Output Voltage
      300 V ~ 1000 V
    • Photovolatic Input
      300-740 Vdc, Max 30 kW
    • Dimensions (LxWxH)
      2236 X 970 X 2080 mm
    • Weight
      3600 kg
    • Configurations
      CCS2
    • Dimensions (LxWxH)
      3673 X 970 X 2080 mm
    • Weight
      5870 kg
    • Configurations
      CCS2
  • Adaptive Power Capability
    • Max Power Output
      160 kW
    • Current Draw
      33 A
    • Breaker Sizing
      45 A
    • Battery Recharge Time
      ~17 hrs 12 mins
